Secure Logger example

The Secure Logger example demonstrates use of the Distrustful Decomposition pattern for separating event log read/write functionality.

Example architecture

The security goal of the Secure Logger example is to prevent any possibility of distortion or deletion of information from the event log. This example utilizes the capabilities provided by KasperskyOS to achieve this security goal.

A logging system can be examined by distinguishing the following functional steps:

• Generate information to be written to the log.
• Save information to the log.
• Read entries from the log.
• Provide entries in a convenient format for the consumer.

Accordingly, the logging subsystem can be divided into four processes depending on the required functional capabilities of each process.

For this purpose, the Secure Logger example contains the following four entities: Application, Logger, Reader and LogViewer.

• The Application entity initiates the creation of entries in the event log maintained by the Logger entity.
• The Logger entity creates entries in the log and writes them to the disk.
• The Reader entity reads entries from the disk to send them to the LogViewer entity.
• The LogViewer entity sends entries to the user.

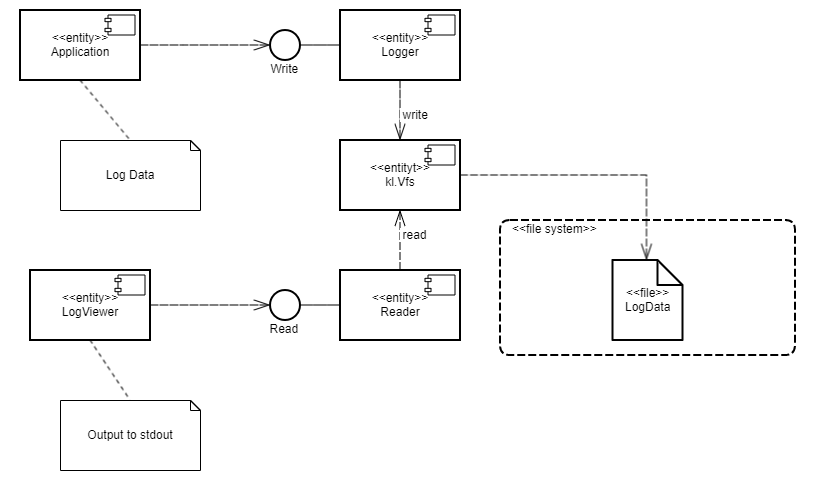

The IPC interface provided by the Logger entity is intended only for writing to storage. The IPC interface of the Reader entity is intended only for reading from storage. The example architecture looks as follows:

• The Application entity uses the interface of the Logger entity to save log entries.
• The LogViewer entity uses the interface of the Reader entity to read the log entries and present them to a user.

The LogViewer entity normally has external channels for interacting with a user (for example, to receive data write commands and to provide data to a user). Naturally, this entity is an untrusted component of the system, and therefore could potentially be used to conduct an attack. However, even if a successful attack results in the infiltration of unauthorized executable code into the LogViewer entity, information in the log cannot be distorted through this entity. This is because the entity can only utilize the data read interface, which cannot actually be used to distort or delete data. Moreover, the LogViewer entity does not have the capability to gain access to other IPC interfaces because this access is controlled by the security module.

A security policy in the Secure Logger example has the following characteristics:

• The Application entity has the capability to query the Logger entity to create a new entry in the event log.
• The LogViewer entity has the capability to query the Reader entity to read entries from the event log.
• The Application entity does not have the capability to query the Reader entity to read entries from the event log.
• The LogViewer entity does not have the capability to query the Logger entity to create a new entry in the event log.

Example files

The code of the example and build scripts are available at the following path:

Building and running example

See the Building and running examples section.
